DDPAI OBD Hardwire Kit for Z50 Dual GPS Dash Cam
Natural Fit
Product Description:
OBD Hardwire kit for Z50 is a power cable specially designed for Z50 to connect to the car OBD to draw power. It has an OBD interface that can be directly plugged into the car OBD to power the dashcam during parking. It supports low voltage protection and can set 3 protection voltages of 11.8V, 12V, and 12.4V. When the car battery voltage is lower than the set value, the dashcam will be automatically powered off.
Selling Points:

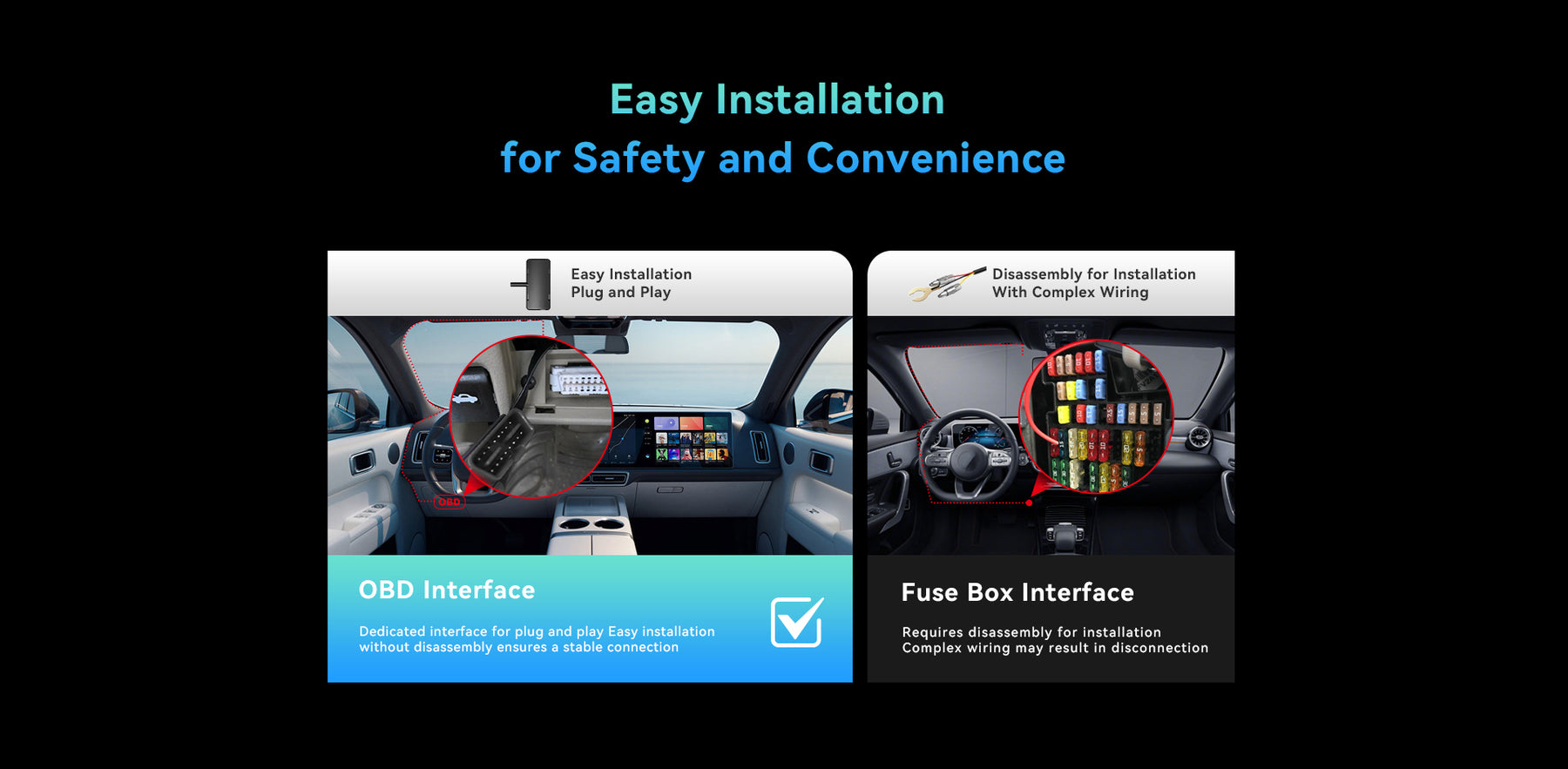

· Easy Installation for Safety and Convenience
Dedicated interface for plug and play easy installation without disassembly ensures a stable connection.
· Make Parking Monitoring Possible for Electric Vehicle
By installing the hardwire kit through the OBD interface, it enables parking monitoring for new energy vehicles.
· Intelligent Recognition of Vehicle Status
Intelligent Recognition Of Vehicle Status For Better 24-Hour Parking Monitoring.
· 5 Layers of Protection for Reliable Recording
5 layers of protection greatly improves the self-defense ability of the hardwire kit and can intelligently protect the dashcam and car battery. *
· 3 Levels Of Protection Voltage Optional
Support 11.8V/12V/12.4V 3-level protection voltage.
· High Flame Retardant and Thick Cable, High and Low Temperature Resistance
Disclaimers:

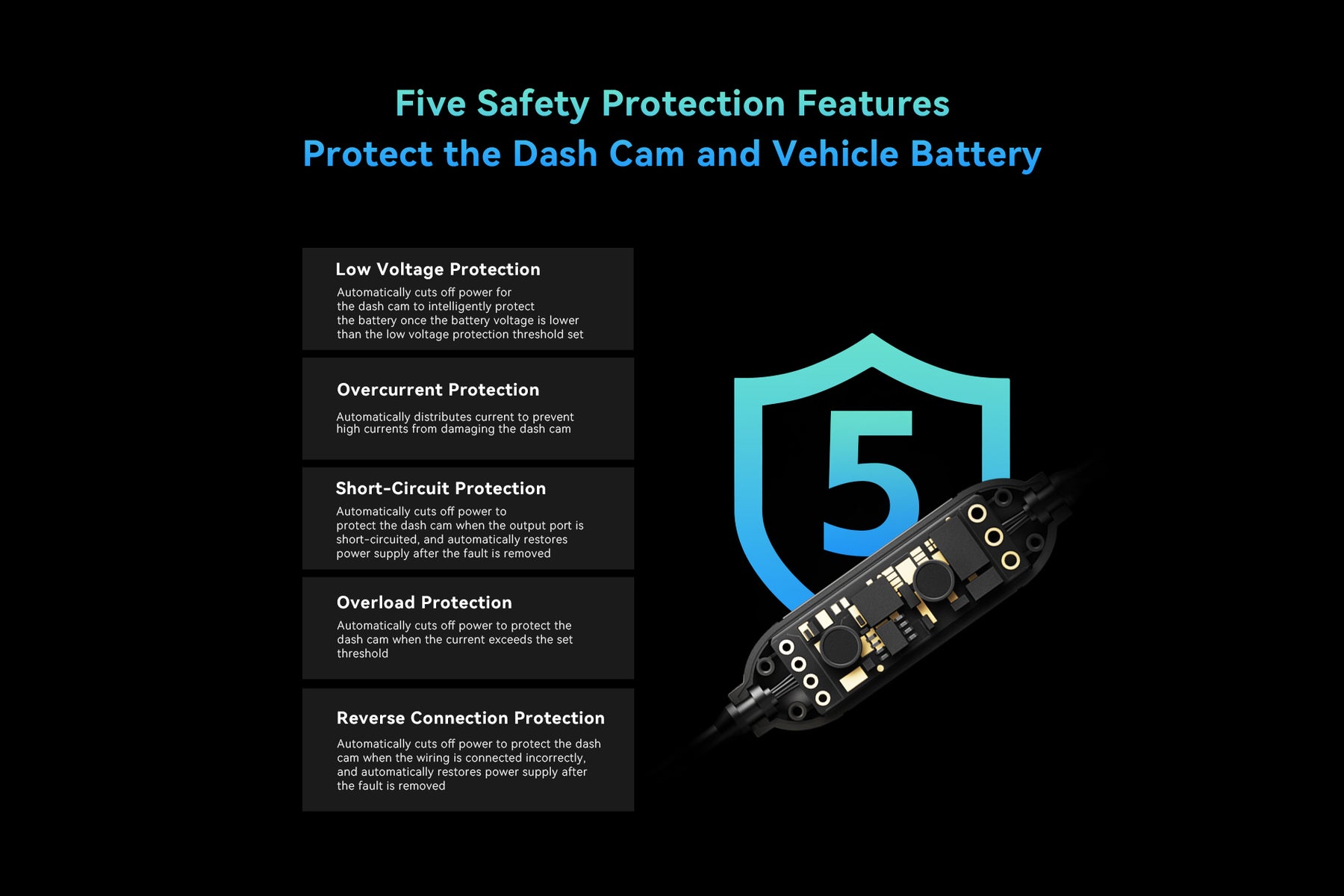

*5 Layers of Protection for Reliable Recording Include:
· Overload Protection
When the current exceeds the pre-set current, the dashcam will be automatically shut off

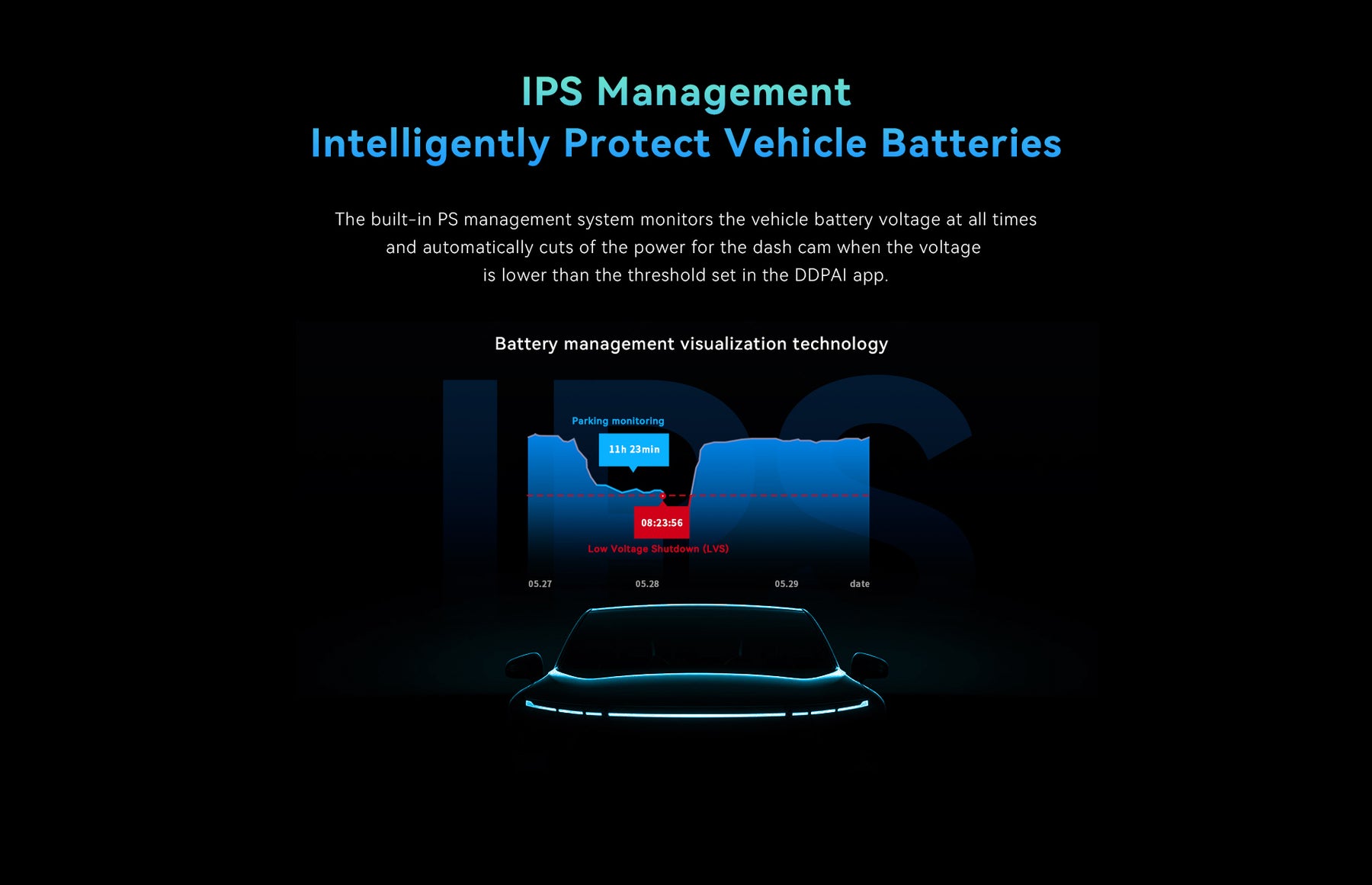

· Low Voltage Protection
Set up low battery voltage according to the car battery condition. When the battery voltage is too low, the dashcam power is automatically cut off to effectively protect the battery.
· Short-circuit Protection
Built-in output short-circuit protection unit. When the output port is short-circuited, it will be
automatically cut off to prevent dashcam damage and will automatically recover when the fault is removed.
· Over Current Protection
Auto-distribution of current prevents damage to the recorder from high currents.
· Anti-reverse Connection Protection
Built-in anti-reverse connection device, when the line is connected incorrectly, it will automatically cut off the segment to prevent equipment damage, and automatically recover after the fault is resolved.
Specifications
Product name: OBD Intelligent Hardwire kit
Product model: DC001
Input voltage: 12V
Output Voltage: 5V/2A
Whats In The Box:
Hardwire Kit *1
User Manual*1
